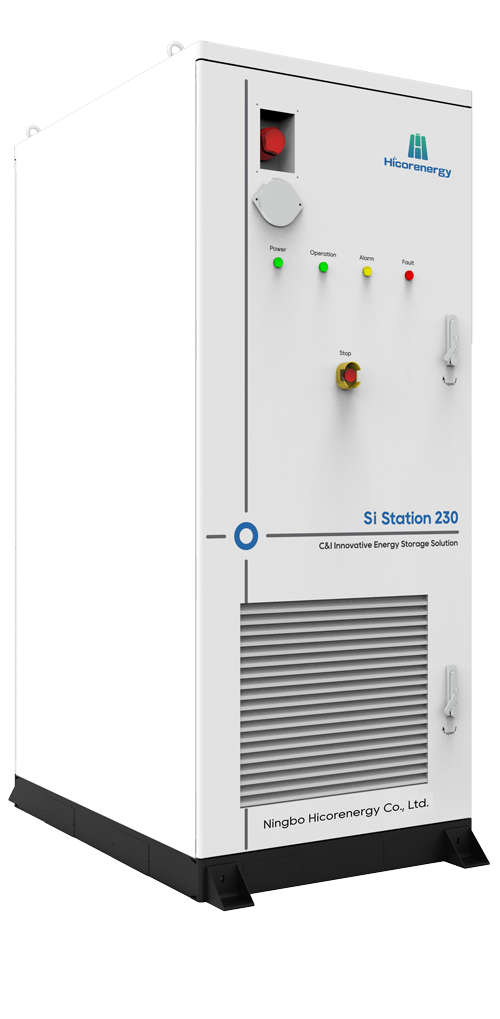

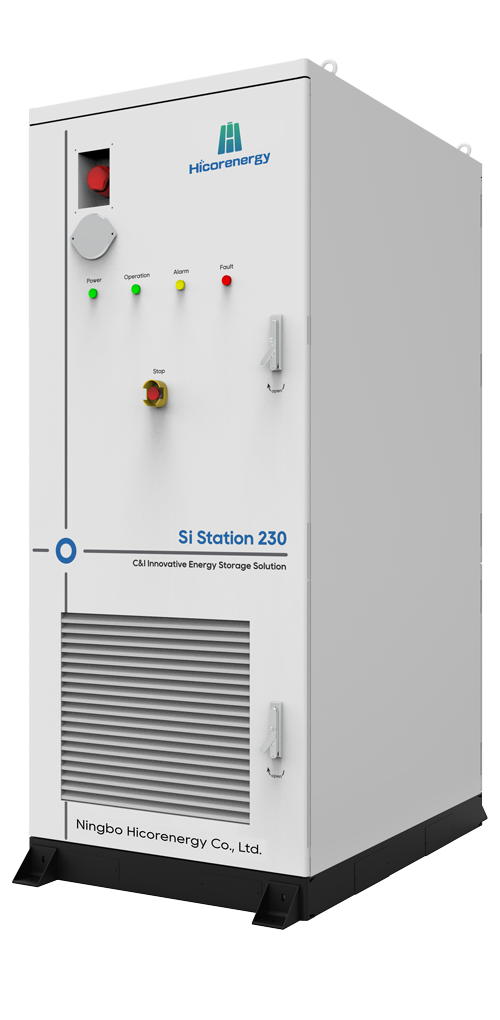

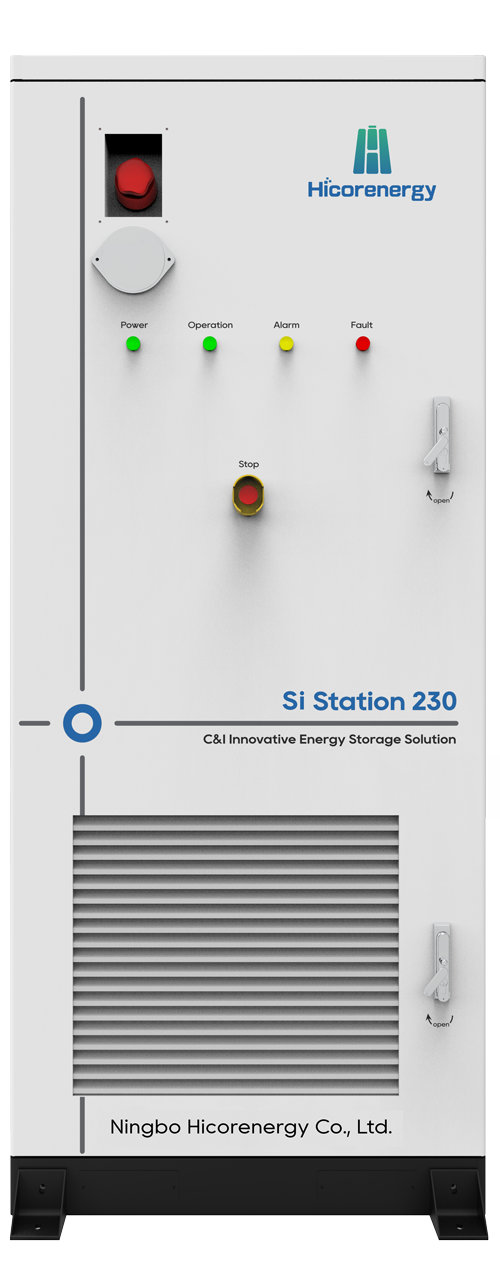

Hicorenergy liquid cooling battery cabinet integrates battery modules with a full configuration capacity of 230 kWh. And can be widely used in various application scenarios such as generation and transmission grid, distribution grid and new energy plants.
All-in-one design and highly integrated,
Modular design with different optional parts.
IP54 rated Parallel
installation back-to-back.
Grid-tied and Off-grid,
208/400/480Vac 3P4W,
Optional PV input,
Optional backup module.
Global grid certified & listed
Compliance with global safety standards.
Ideal for both residential and commercial applications, it ensures uninterrupted power supply with advanced technology and robust build quality.
| System Specificatoin | |
| Battery Chemistry | LFP (LiFePO4) |
| Nominal Output Power | 100KW |
| Battery Capacity | 230kwWh |
| Battery Nominal Voltage | 832V |
| Operating DC Voltage Range | 728V-936V(3P4W) |
| Recommended.Charging/Discharging Current | 140[1] |
| Fire Fighting System | Sensor tube, with the agent of NOVEC 1230 or FM200 or water |
| Cycle life | 4500[2] |
| DOD | 100% |
| Warranty | 3 Year Product Warranty, 10 Year Battery Warranty |
| Conmmunication | |
| communication port | CAN, RS485, Ethernet |
| Communication protocol | ModbusRTU/TCP |
| Mechanical | |
| Dimensions(/*D*H) | 960*1440*2400mm |
| Weight | 3000kg |
| Cooling System | Liquid cooling |
| IP protection | IP54 |
| Environmental | |
| Reactive Humidty | 0-95% (no condensing) |
| Operating Temperature Range | Charge:0~55℃,Discharge:-20～55c |
| Altitude | 2000m （>2000 derating) |
| Regulations | |
| Certification | CELL:IEC62619,UL1973,UL1642,UL9540A,GB/T36276-2018.GB/T36276-2023,1S16046(Part 2):2018,GB,GD22-2019,2006/66/EC,ROHS, GB/T 30512UN38.3 PCS:CQCGB/T 34120-2017，CQCGB/T36547-2018;GB/T36548-2018，EMCCE-EMCEN61000-6-2:2019;EN61000-6-4:2019，CE-LVDEN62477-1，EN50549-1:2019+AC:2019-04，EN50549-1:2019+AC:2019-04EN50549-1:2019+AC:2019-04，EN50549-1:2019+AC:2019-04，EN50549-1:2019+PSE:2018-12，NRS097-2-1:2017 System:GB/T 36276,UN38.3 |
[1]Charge and discharge current derating will occur between -20℃ and 0℃;
[2]Under test conditions(25±3℃, 0.5P, EOL80%)
